NA2355 Series Two Lug Plate Nut

NutPlateSelf-LockingFloatingTwo Lug Notes: All dimensions are in inches and apply after finish and prior to the application of lubrication unless otherwise specified. /2/ Threads shall be in accordance with AS8879 before lubrication./3/ Parts shall be marked with NAFCO USA, LLC manufacturing mark “N”. Markings shall be raised or depressed .010 inch maximum. Location optional. /4/ […]

Read More…

NA2483 Series Rivetless Nutplate

NutplateRivetlessTI and Stainless Steel RetainerSealed Head Class IFloating Notes: Dimensions are in inches unless otherwise specified.Dimensioning and tolerancing per ANSI Y14.5M-1982.Identification of Product: Products shall be marked in accordance with MIL-STD-130.This standard takes precedence over documents referenced herein.Referenced documents shall be the issue in effect on date of invitations for bid. Unless otherwise specified, part […]

Read More…

NA2482 Series Rivetless Nutplate

NutplateRivetlessTI and Stainless Steel RetainerSealed HeadClass IFloating Notes: Dimensions are in inches unless otherwise specified.Dimensioning and tolerancing per ANSI Y14.5M-1982.Identification of Product: Products shall be marked in accordance with MIL-STD-130.This standard takes precedence over documents referenced herein. Referenced documents shall be the issue in effect on date of invitations for bid. Unless otherwise specified, part […]

Read More…

NA2452 Series Fixed Two Lug Plate Nut

Nut PlateSelf-LockingLow HeightFixedTwo Lug Notes: /1/ Minimum “E” limited only by strength requirements of specification./2/ Threads shall be MJ form in accordance with FED-STD-H28/21. For acceptability see procurement specification.Dimensioning and tolerancing per ASME Y14.5M.Dimensions in millimeters and apply after finish and prior to the application of lubrication unless otherwise specified. For CRES, magnetic permeability shall […]

Read More…

NA2390 Series Floating Nut Plate

NutSelf-LockingPlateFloatingLow HeightReduced Rivet SpacingCounterbored160 KSI450℉800℉ Notes: /1/ Mark “C” on CRES parts. Location Optional./2/. Raised or depressed dot for 160 KSI identification, location optional./3/ Manufacturer’s I.D., location optional. /4/ 2K minimum diameter clearance for attaching rivets./5/ Float of nut portion of assembly shall not be less than .020 inches laterally and longitudinally from centered position. […]

Read More…

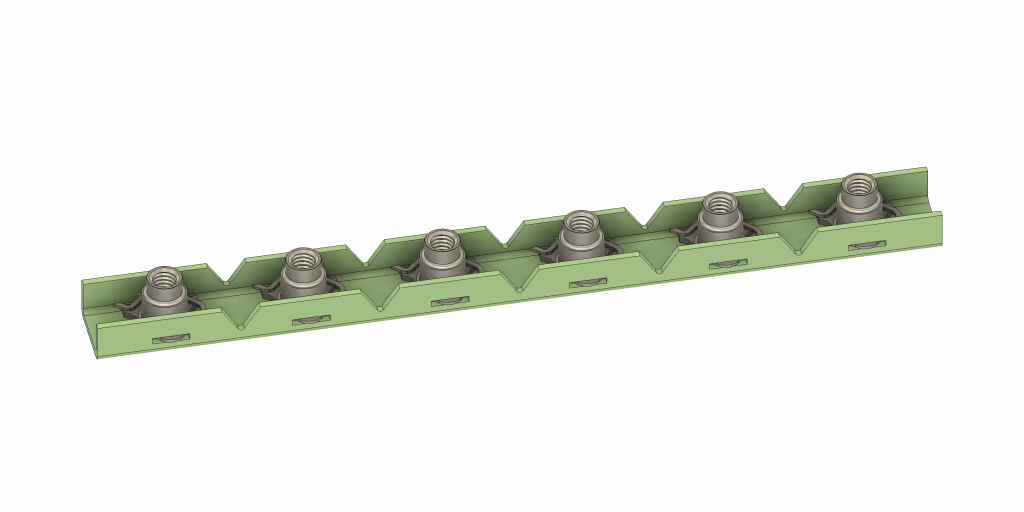

NA2399 Series Gang Channel

NutGang Channel Notes: The complete requirements for items procured to this drawing shall be in accordance with AIA/NAS NASM25027 and as specified herein. In the event of conflict, this drawing shall govern.Dimensions are in inches and per ASME Y14.5. Dimensions shown are prior to the application of the finish.Material and Finish Requirements: See material and […]

Read More…

NA2158 Series Jiffynut

MiniatureSelf-LockingNon-Locking Notes: Dimensions are in inches and apply after finish and prior to the application of lubrication unless otherwise specified.This standard takes precedence over documents referenced herein. The threads shall be in accordance with AS8879 prior to solid film lubricant coating. The upper portion of the nut shall be deformed to provide self-locking feature.Push-out and […]

Read More…

NA2181 Series Dome Nut

Two-LugSelf-SealingSelf-LockingFloating Nut Element Notes: Minimum radial float shall be .020. Maximum axial float shall be .030.Nut element shall be capable of engagement with a bolt in the maximum misaligned position.Pressure range is 0 to 50 PSI. […]

Read More…

NA2168 Series Clinchnut / NASM45938/6

ClinchnutSelf-Locking Notes: See page 2.2 (in Engineering Specs) for installation procedure and recommended tooling.Under no circumstances will silver plating and solid film lubricant both be applied to A286 corrosion resistant steel. “M” finish code is equivalent to and supersedes “DF” finish code. For other finishes and materials contact NAFCO USA, LLC. INSTALLATION PROCEDURE : Installation […]

Read More…

NA2480 Series Retainer Nut / 3D0364 / NAS1794

RetainerNutRivetlessComposite Application Notes: *UNLESS OTHERWISE SPECIFIED* This drawing takes precedence over all documents referenced herein.Dimensional tolerances and symbols per ANSI Y14.5M-1982.Surface texture 125 microinches Ra max per ANSI B46.1-1978.Deburr and break all edges .005-.015./5/ Diameter “A” is not inspectable at receiving. This is the final hole diameter after installation without reaming./6/ “L” is not inspectable […]

Read More…
