PART NUMBER:

NA2134

FEDERAL SUPPLY CODE:

32387

NA2134 Corner Anchor Nut

NUT, ANCHOR, CORNER, VARIABLE COUNTERBORE, FIXED, 160,000 PSI

Download Schematics
Show Marketing View
Show Engineering View
3D Model View
Schematic View

Your web browser doesn't have a PDF plugin. Instead you can click here to download the PDF file.

Your web browser doesn't have a PDF plugin. Instead you can click here to download the PDF file.

Specifications
MATERIAL:
  • A286

    Corrosion resistant steel per AMS5732 or AMS5737.

FINISH:
  • No Code

    Silver plate all thread surfaces .0001 min. thickness per AMS2410.

  • "NL" Code

    Silver plate all thread surfaces .0001 min. thickness per AMS2410.

  • "TI" Code

    Passivated plus TI-O-LUBE 460 dry film lubricant.

  • "DF" Code

    Passivated plus NAFCO molybdenum disulfide dry film lubricant.

SERVICE TEMP.:
  • No Code

    To 900 degrees Fahrenheit.

  • "NL" Code

    To 900 degrees Fahrenheit.

  • "TI" Code

    To 800 degrees Fahrenheit.

  • "DF" Code

    To 800 degrees Fahrenheit.

CODE:
  • No Code

    Locking torque reusability to be tested with an A286 CRES bolt with threads per AS8879, Class 3A.

  • "NL" Code

    Non-locked.

  • "TI" Code

    Locking torque reusability to be tested with a titanium bolt with threads per AS8879, Class 3A.

  • "DF" Code

    Molybdenum disulfide dry film lubricant, tested with a titanium bolt with threads per AS8879, Class 3A.

VARIATIONS:
  • Other materials and sizes available upon special request.

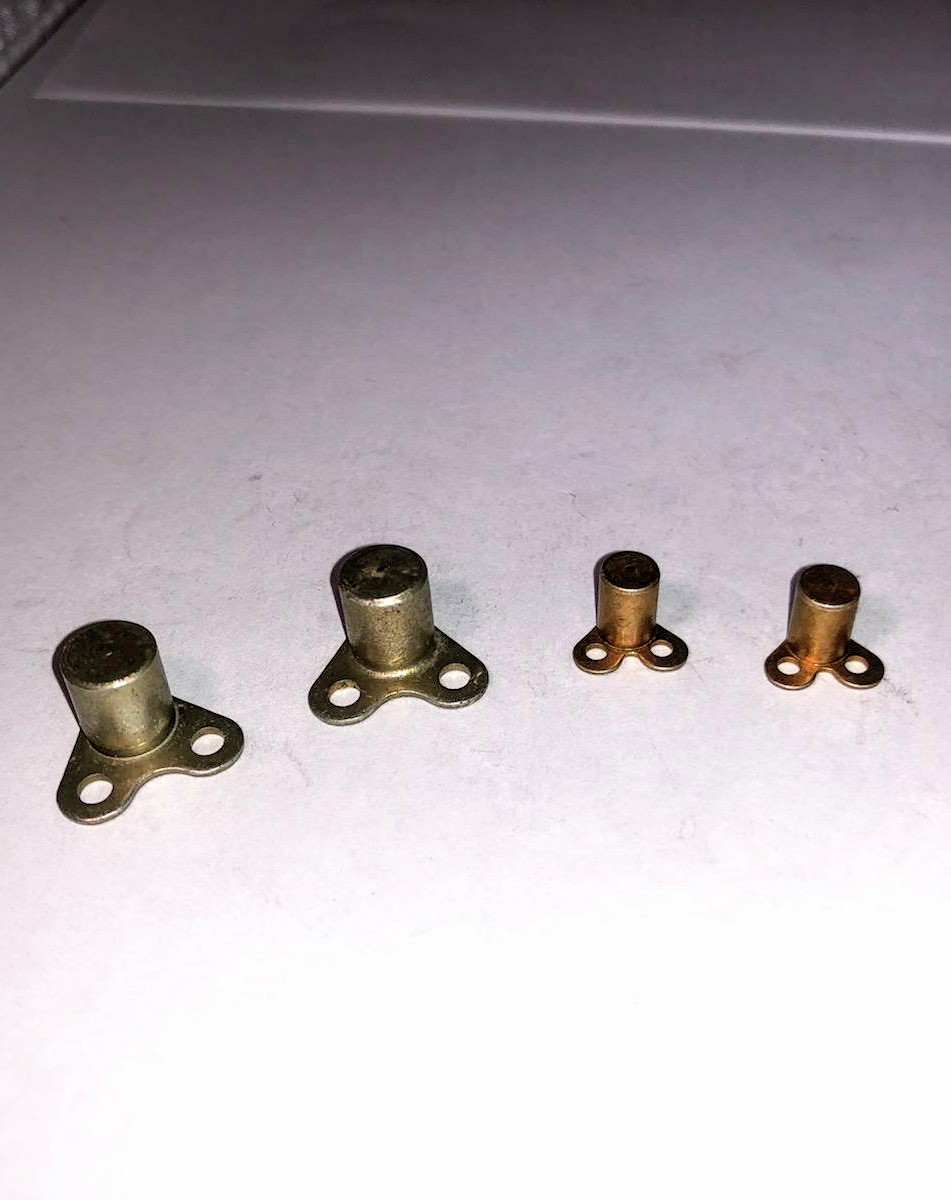

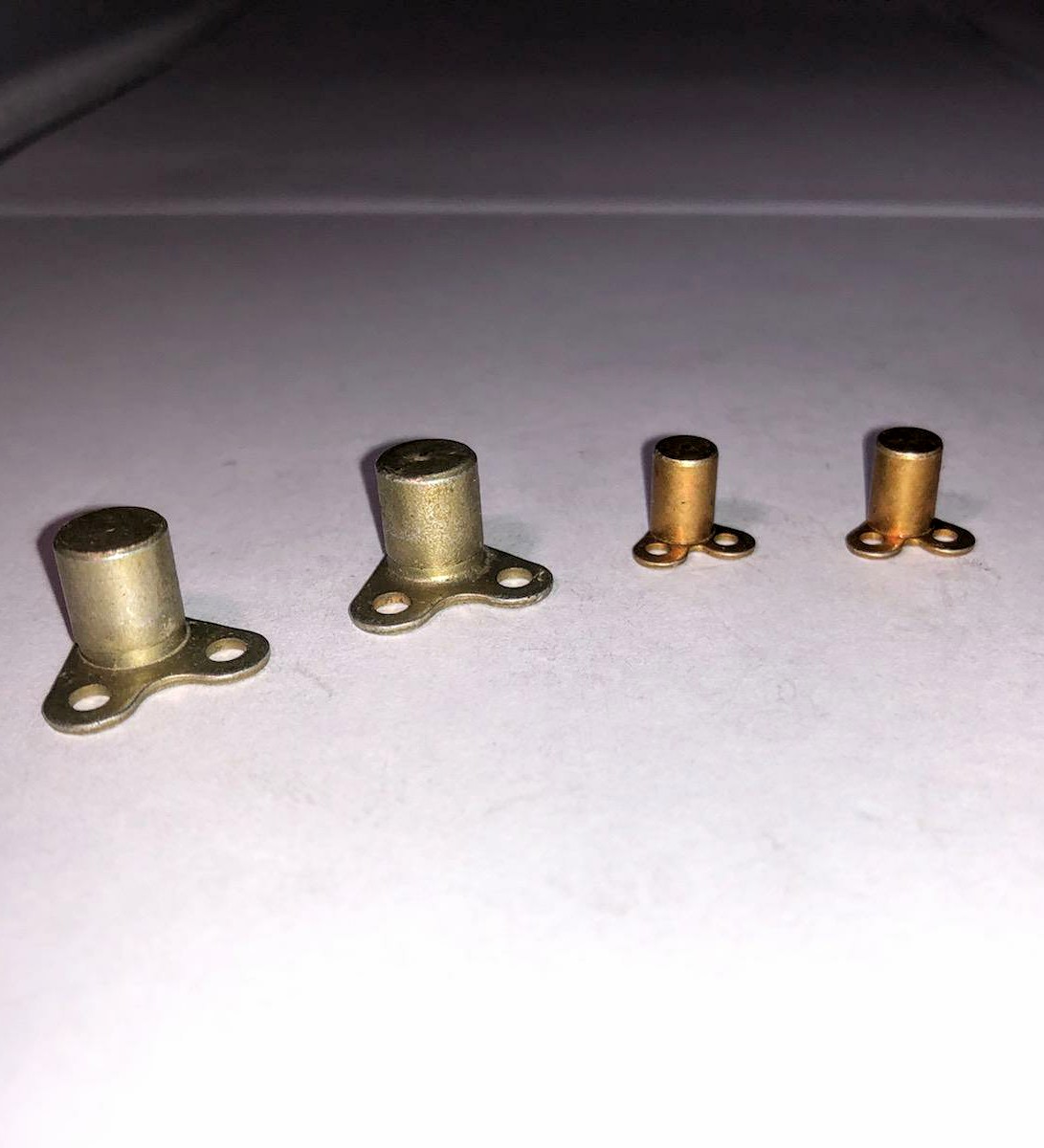

Image Gallery
3D Model View
Product Information

Marketing Summary

PART #: NA2134

  • Nut
  • Anchor
  • Corner
  • Variable Counterbore
  • Fixed
  • 160,000 PSI
  • These nuts are designed to develop the tensile strength of bolts and screws with an ultimate tensile strength of 160,000 PSI based on the stress area of the threads as specified in NBS Handbook H-28.

Part Number Example Callout

NA2134 – 02 – 2:

NA2134 = Basic Part Number
-02 = Thread Size (See Table I)
-2 = Minimum Thread Relief (See Table I)

Notes:

  1. Manufacturer’s identification mark “N” optional. “NL” stamped on parts without lock. “TI” stamped on parts designated for use with titanium bolts. “DF” stamped on parts lubricated with NAFCO molybdenum disulfide dry film lubricant. Location optional.
  2. Second dash number is stamped for identification. Location optional.
  3. Magnetic permeability shall be less than 2.0 (air = 1.0) for a field strength of H=200 oersteds using a magnetic permeability indicator per MIL-I-17214 or equivalent.

Specifications

MATERIAL
  • A286:

    Corrosion resistant steel per AMS5732 or AMS5737.

FINISH
  • No Code:

    Silver plate all thread surfaces .0001 min. thickness per AMS2410.

  • "NL" Code:

    Silver plate all thread surfaces .0001 min. thickness per AMS2410.

  • "TI" Code:

    Passivated plus TI-O-LUBE 460 dry film lubricant.

  • "DF" Code:

    Passivated plus NAFCO molybdenum disulfide dry film lubricant.

SERVICE TEMP.
  • No Code:

    To 900 degrees Fahrenheit.

  • "NL" Code:

    To 900 degrees Fahrenheit.

  • "TI" Code:

    To 800 degrees Fahrenheit.

  • "DF" Code:

    To 800 degrees Fahrenheit.

CODE
  • No Code:

    Locking torque reusability to be tested with an A286 CRES bolt with threads per AS8879, Class 3A.

  • "NL" Code:

    Non-locked.

  • "TI" Code:

    Locking torque reusability to be tested with a titanium bolt with threads per AS8879, Class 3A.

  • "DF" Code:

    Molybdenum disulfide dry film lubricant, tested with a titanium bolt with threads per AS8879, Class 3A.

VARIATIONS
  • :

    Other materials and sizes available upon special request.
