PART NUMBER:

NA2137

FEDERAL SUPPLY CODE:

32387

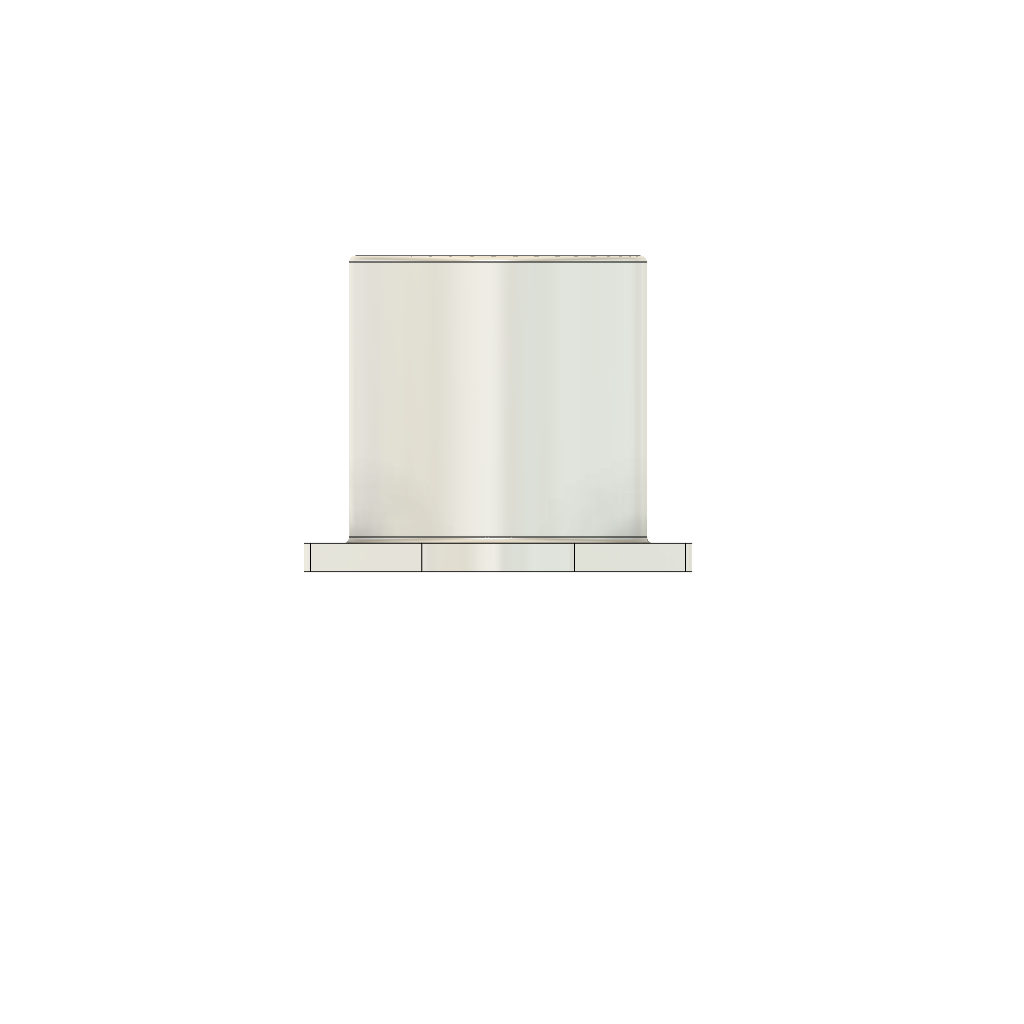

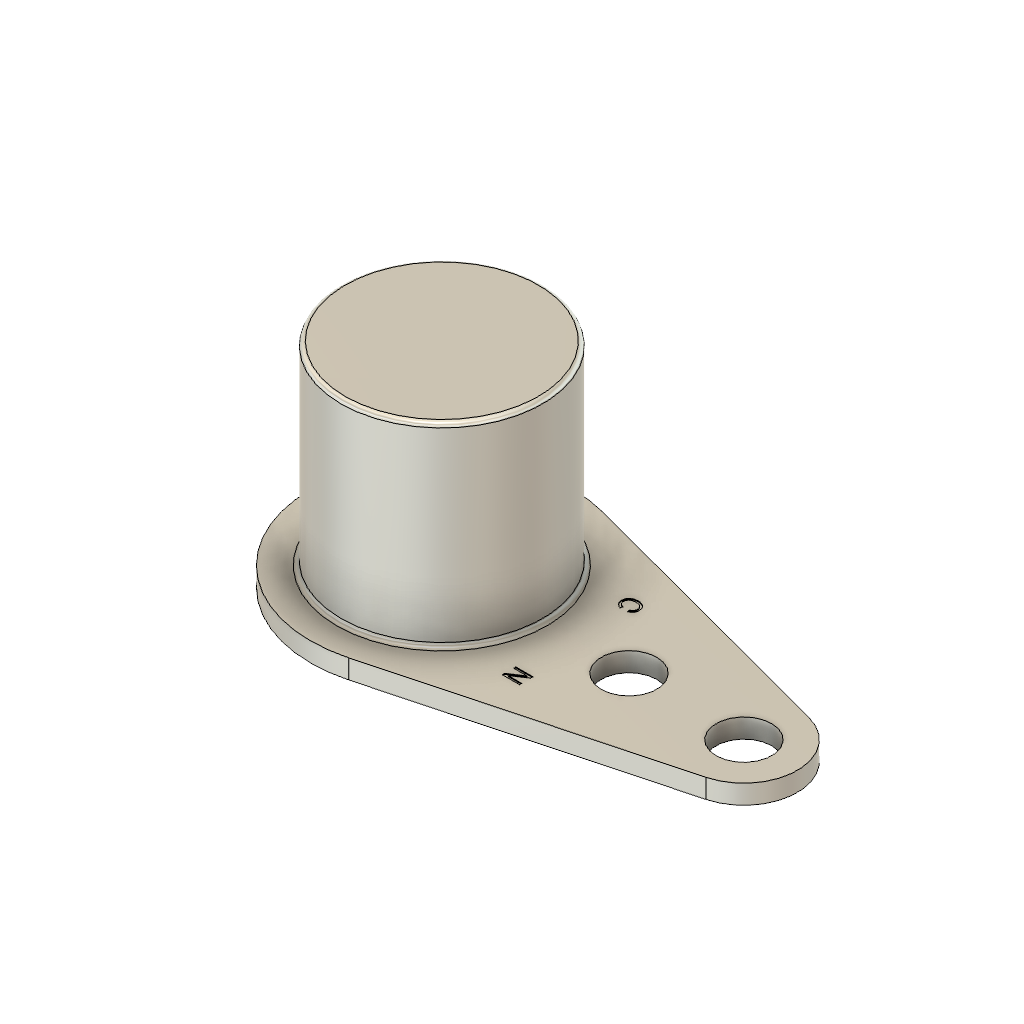

NA2137 Series One Lug Capped Anchor Nut / BOOTS MT12CK, MT12CK1, MT12SK, MT12SK1

NUT, ANCHOR, MINIATURE, ONE LUG, FIXED, CAPPED, 125,000 PSI

Download Schematics
Show Marketing View
Show Engineering View
3D Model View
Schematic View

Your web browser doesn't have a PDF plugin. Instead you can click here to download the PDF file.

Your web browser doesn't have a PDF plugin. Instead you can click here to download the PDF file.
Download Schematics Request Quote
Specifications
MATERIAL:

  • NO CODE -- NUT

    Carbon steel, heat treated.

  • NO CODE -- CAP

    Carbon steel.

  • "C" CODE -- NUT

    A286 corrosion resistant steel.

  • "C" CODE -- CAP

    A286 corrosion resistant steel or 300 series corrosion resistant steel.

FINISH:

  • NO CODE

    Cadmium plated per AMS-QQ-P-416, type II, class 2, plus NAFCO carbowax lubricant.

  • "C" CODE -- NUT & CAP

    Silver plated per AMS2410.

SERVICE TEMP.:

  • NO CODE

    To 450℉.

  • "C" CODE

    To 900℉.

VARIATIONS:

  • "H" SUFFIX

    Add after dash no. for ⌀.062 inspection hole in top of cap.

  • "P" SUFFIX

    Add after dash no. for projection welding nibs.

  • "BC" SUFFIX

    Add after dash no. for countersunk rivet holes.

  • "NF" SUFFIX

    Add after dash no. for no finish.

  • "NR" SUFFIX

    Add after dash no. for plain base without rivet holes.

APPLICATION:

  • The cap on the nut prevents wire abrasion, traps metallic flakes, and protects bolt threads against contamination.

Image Gallery

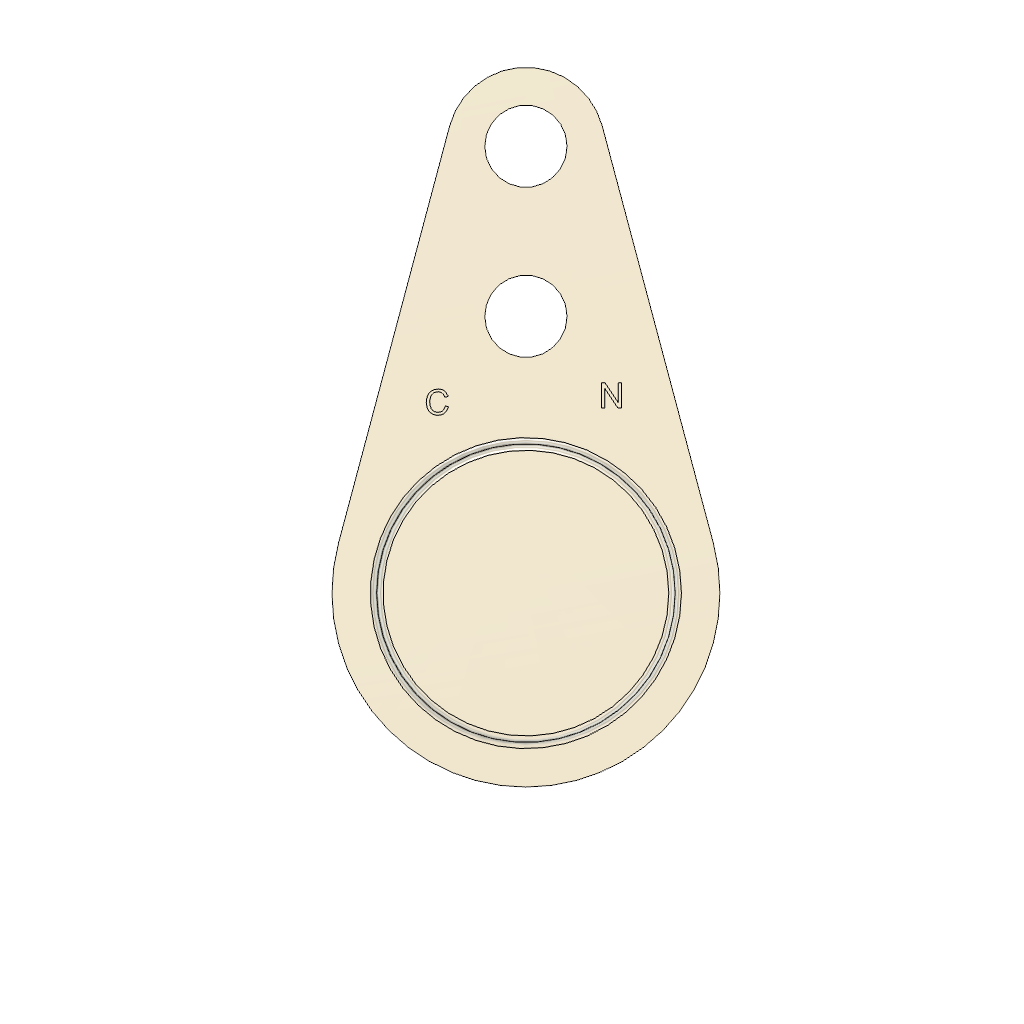

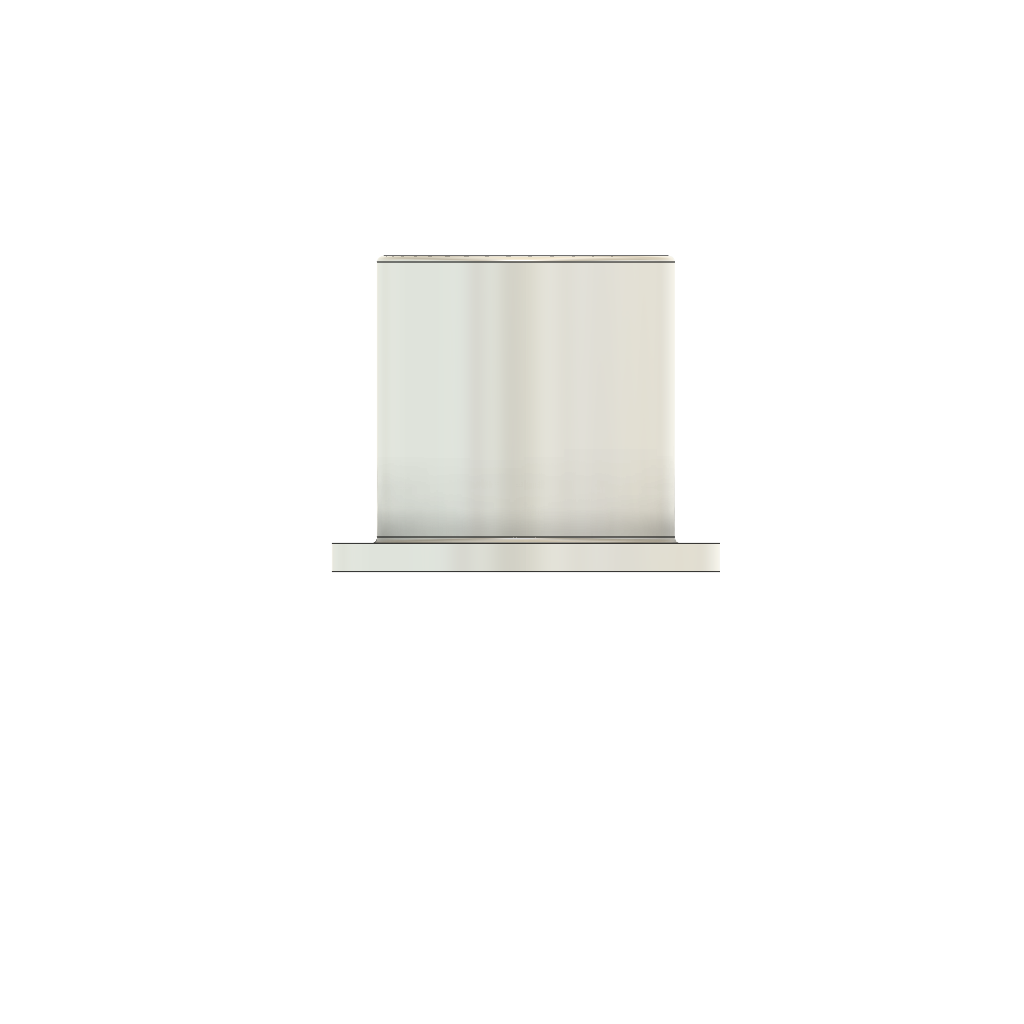

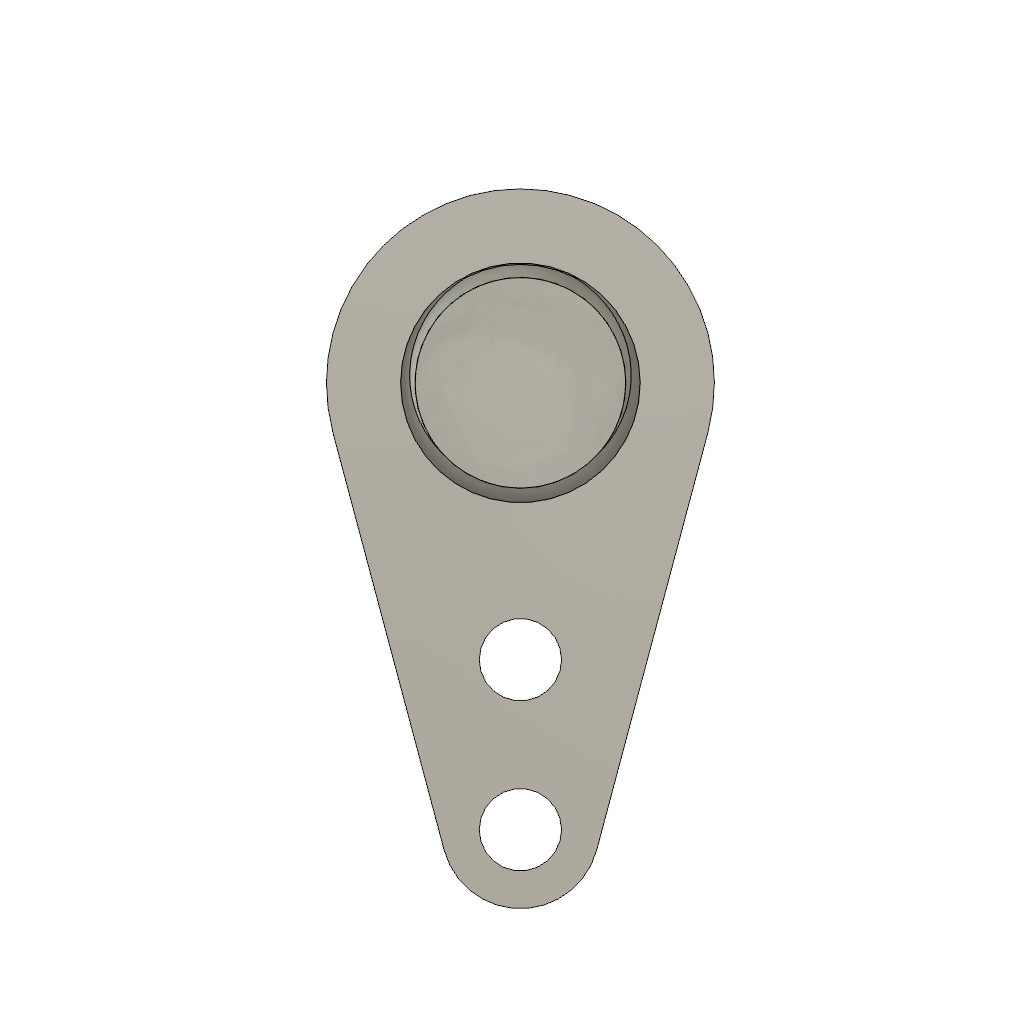

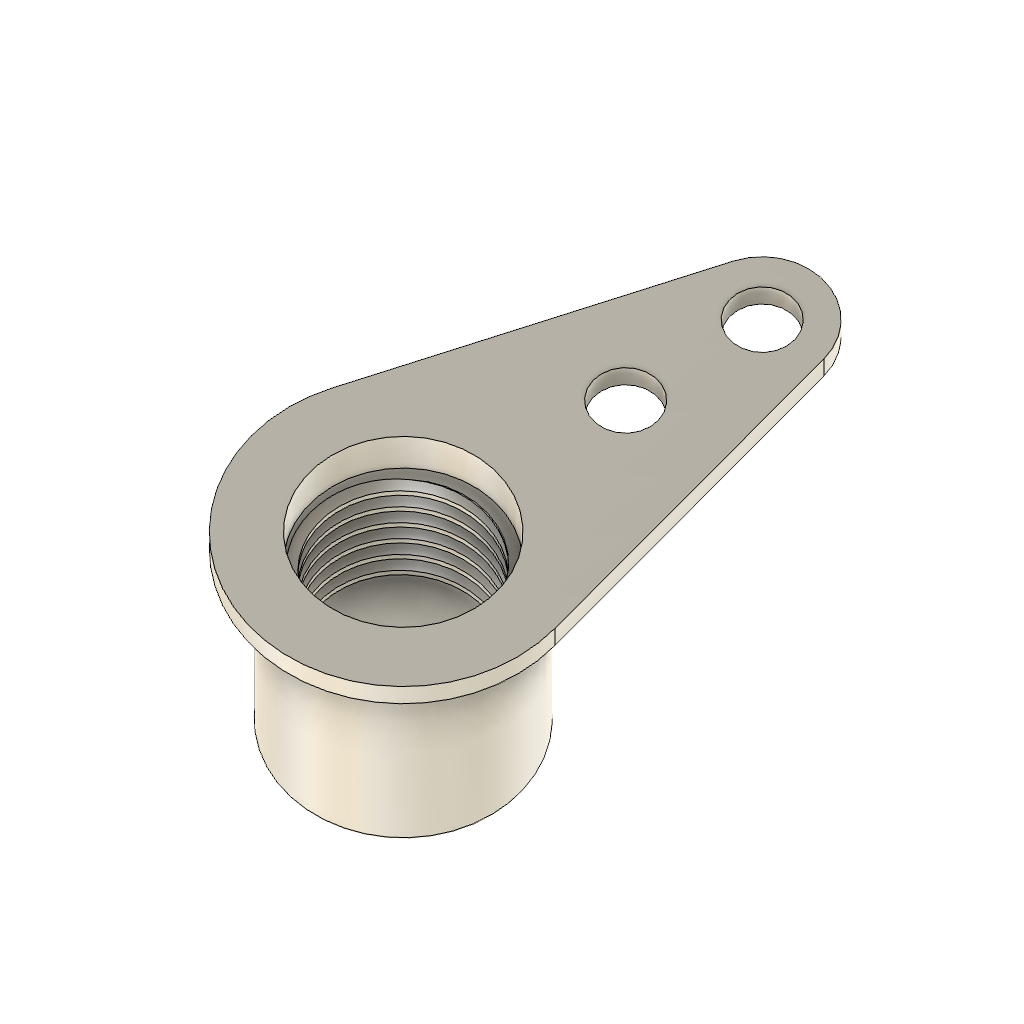

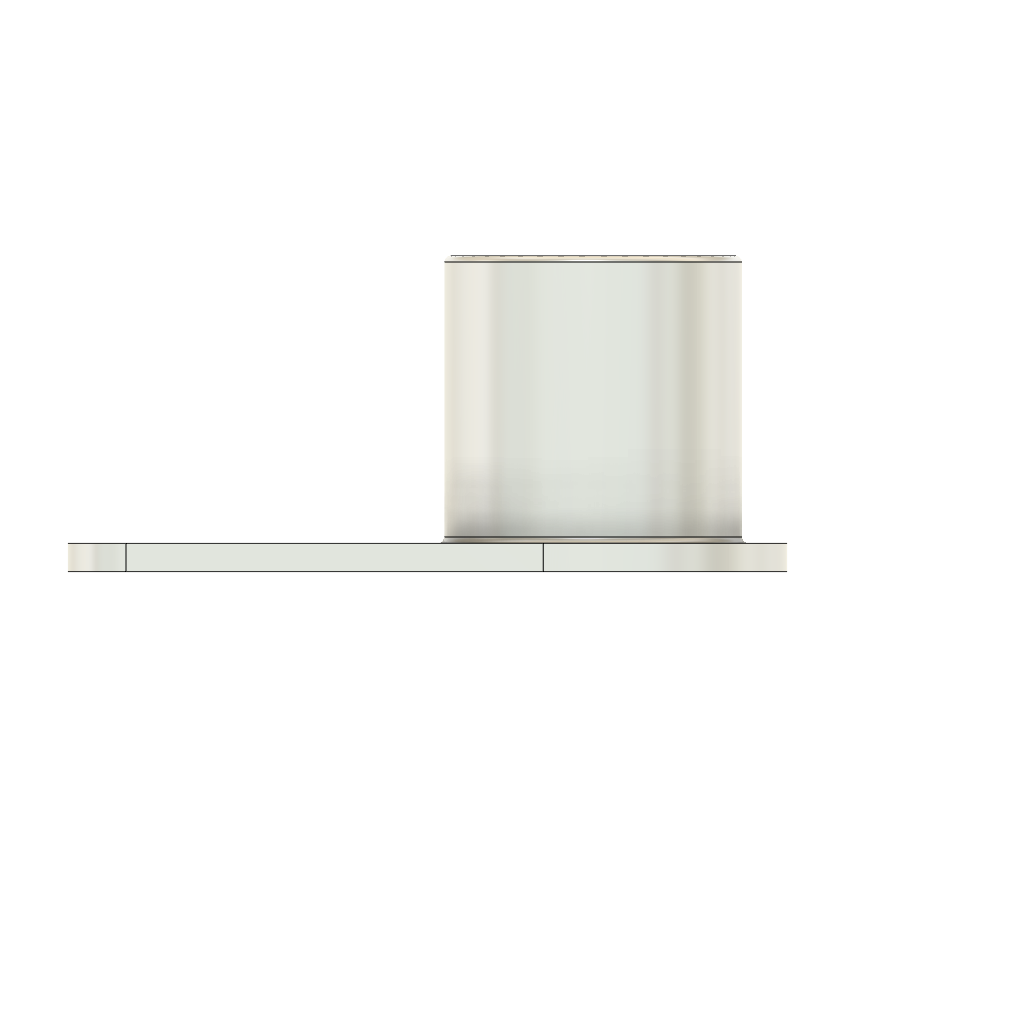

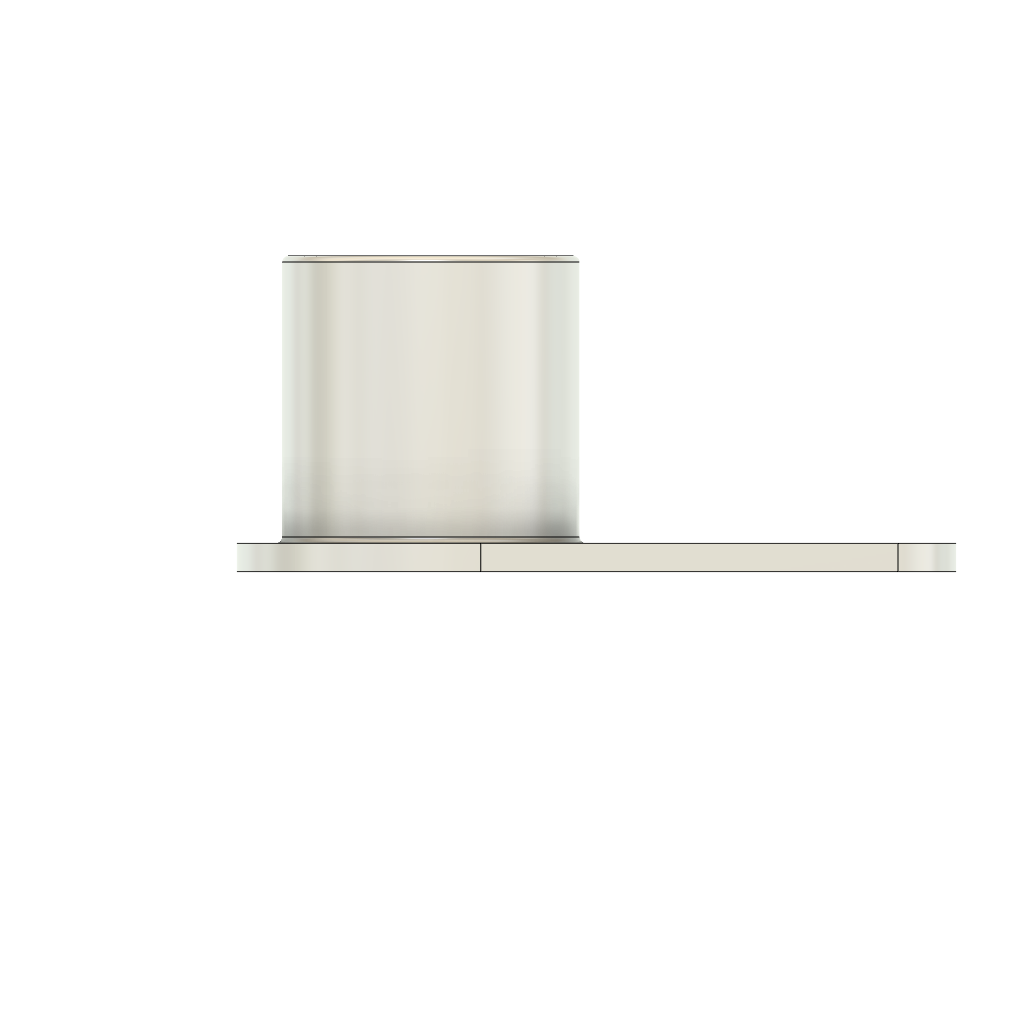

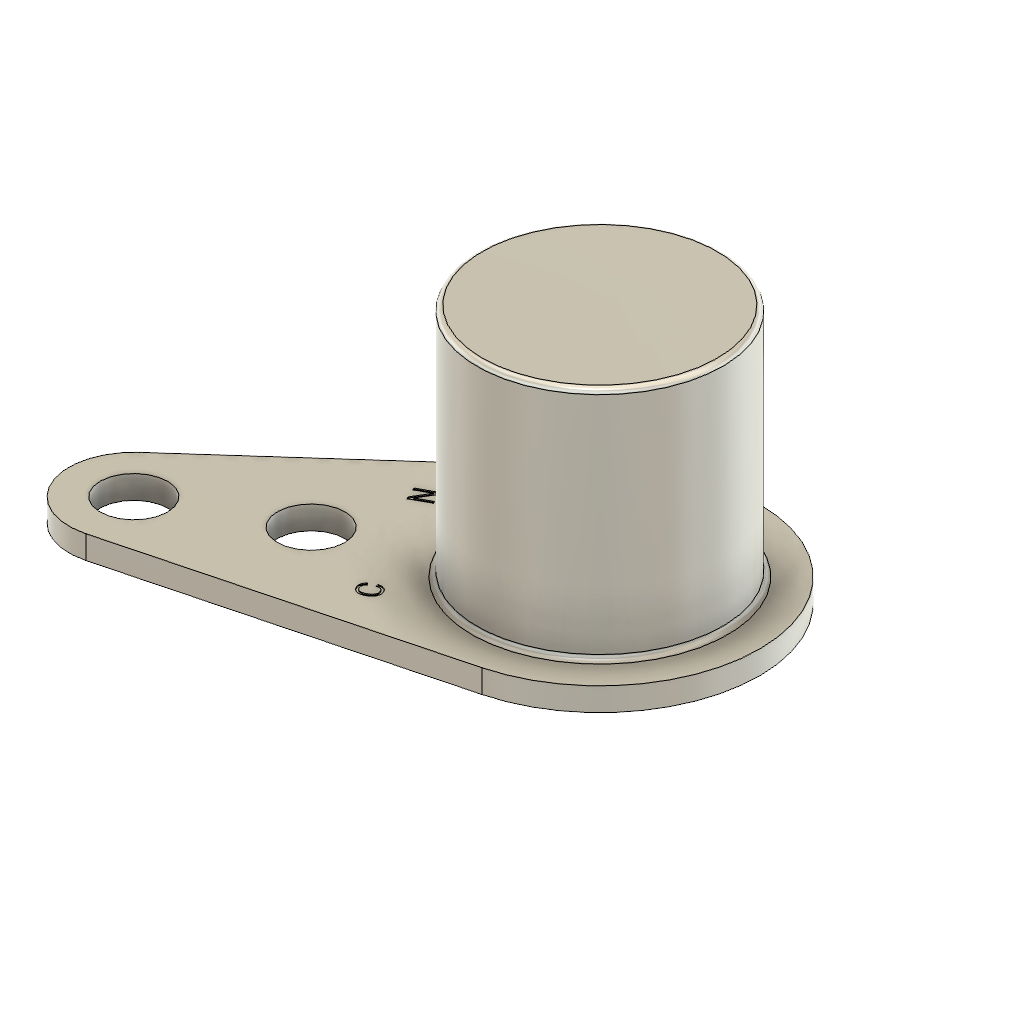

3D Model View
Product Information

Marketing Summary

PART #: NA2137

  • Nut
  • Anchor
  • Miniature
  • One Lug
  • Fixed
  • Capped
  • 125,000 PSI

Part Number Example Callout

NA2137 C – 02 – K H :

NA2137 = Basic Part Number
C = Material Code (See Material Code Section)
– 02 = Thread Size (See Table I in Engineering Specs)
– K = Dome Height (See Table I in Engineering Specs)
H = Dash No. Suffix (See Variations Section)

Notes:

  1. The cap squareness shall not restrict the full entry of the mating bolt.

Specifications

EXPAND ALL SECTIONS
MATERIAL

  • NO CODE -- NUT:

    Carbon steel, heat treated.

  • NO CODE -- CAP:

    Carbon steel.

  • "C" CODE -- NUT:

    A286 corrosion resistant steel.

  • "C" CODE -- CAP:

    A286 corrosion resistant steel or 300 series corrosion resistant steel.

FINISH

  • NO CODE:

    Cadmium plated per AMS-QQ-P-416, type II, class 2, plus NAFCO carbowax lubricant.

  • "C" CODE -- NUT & CAP:

    Silver plated per AMS2410.

SERVICE TEMP.

  • NO CODE :

    To 450℉.

  • "C" CODE:

    To 900℉.

VARIATIONS

  • "H" SUFFIX:

    Add after dash no. for ⌀.062 inspection hole in top of cap.

  • "P" SUFFIX:

    Add after dash no. for projection welding nibs.

  • "BC" SUFFIX:

    Add after dash no. for countersunk rivet holes.

  • "NF" SUFFIX:

    Add after dash no. for no finish.

  • "NR" SUFFIX:

    Add after dash no. for plain base without rivet holes.

APPLICATION

  • :

    The cap on the nut prevents wire abrasion, traps metallic flakes, and protects bolt threads against contamination.

Interchangeability

BOOTS MT12CK BOOTS MT12CK1 BOOTS MT12SK BOOTS MT12SK1

Related Tags

125000 PSI 32387 AMS-QQ-P-416 AMS2410 ANCHOR AS8879 BOOTS MT12CK BOOTS MT12CK1 BOOTS MT12SK BOOTS MT12SK1 CAPPED FIXED MINIATURE NASM25027 NUT ONE LUG
